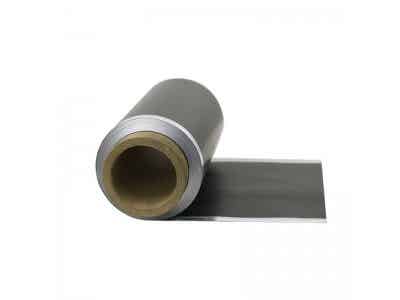

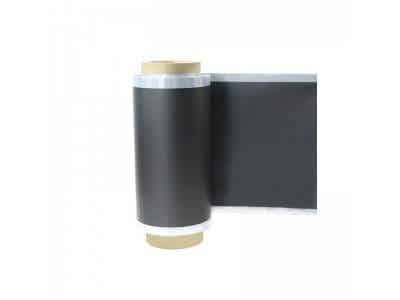

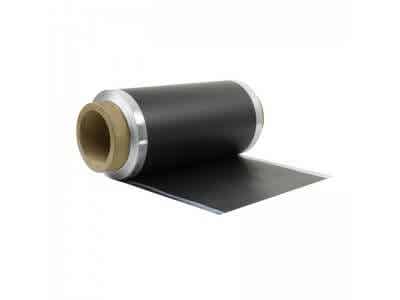

超级电容/动力电池用石墨烯涂层铝箔
(Graphene coated aluminum foil for supercapacitor/power battery.)
|
A1 layer |
|
Etching layer |
|
Graphene layer |
利用碳的良好导电、散热及耐化性。
提供极佳的导电性能，大幅度降低正/负极材料和集流之间的接触电阻。
提高附着力，增加导热度，提高产品稳定。
规格说明：
|
Ⅰ第一码
|
Ⅱ第二码 |
Ⅲ、Ⅳ第三、四码 |
Ⅳ第四码 |
|
涂布原料 |
黏结剂种类
|
原箔厚度 |
涂层厚度(双面) |
|
涂布原料 |
黏结剂种类 |
铝箔厚度 |
石墨稀厚度 |
|
石墨烯
|
水性黏结剂 |
20:20um |
1:Double sidedbelow 1um |
|
碳纳米管 |
聚偏氟乙烯
|
16:16um |
2:Double sidedbelow 2um |
|
碳粉 |
热固型黏结剂
|
15:15um |
Customized thickness |
|
|
电池阴极专用黏结剂 |
12:12um |
|
|
|
热熔胶
|
|
|
快充解决及附着力方案-石墨烯涂层铝箔
石墨烯涂层箔-作为锂离子电池基材,主要由黏结剂与石墨稀两者相结合。藉由石墨烯优异的理论导电(106S/m)及导热率(5000w/m.k:X-Y平面)，可有效地收集电活性物质在充放电过程中所产生的电能及热。
涂碳箔(石墨烯水性黏结剂)GW系列
|
产品型号 |
厚度/双面总和(um) |
单位面密度(g/M2) |
拉力(Kg/cm) |
抗弯 |
素箔达因56 |
碳层达因56 |
胶带>8N/cm |
耐溶剂(NMP,BAC) |
耐水性 |
|
GW-121 |
1 |
0.3~0.7 |
3±0.3 |
250< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-122 |
2 |
0.6~1.4 |
3±0.3 |
250< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-161 |
1 |
0.3~0.7 |
3±0.3 |
75< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-162 |
2 |
0.6~1.4 |
3±0.3 |
75< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-121 |
1 |
0.3~0.7 |
3±0.3 |
250< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-122 |
2 |
0.6~1.4 |
3±0.3 |
250< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-161 |
1 |
0.3~0.7 |
3±0.3 |
75< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-162 |
2 |
0.6~1.4 |
3±0.3 |
75< |
Pass |
Pass |
Pass |
Pass |
Pass |
涂碳箔(GW石墨烯水性黏结剂)(TM碳管热熔胶系)
|
产品型号 |
厚度/双面总和(um) |
单位面密度(g/M2) |
拉力(Kg/cm) |
抗弯 |
素箔达因56 |
碳层达因56 |
胶带>8N/cm |
耐溶剂(NMP,BAC) |
耐水性 |
|
GW-221 |
1 |
0.3~0.7 |
3.2±0.3 |
70< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-222 |
2 |
0.6~1.4 |
3.2±0.3 |
70< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-301 |
1 |
0.3~0.7 |
4.5±0.3 |
85< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-302 |
2 |
0.6~1.4 |
4.5±0.3 |
85< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-221 |
1 |
0.3~0.7 |
3.2±0.3 |
70< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-222 |
2 |
0.6~1.4 |
3.2±0.3 |
70< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-301 |
1 |
0.3~0.7 |
4.5±0.3 |
85< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-302 |
2 |
0.6~1.4 |
4.5±0.3 |
85< |
Pass |
Pass |
Pass |
Pass |
Pass |
用于锂电特性测试
